138-960MHz Hybrid Coupler VSWR ≤1.25 PIM -150 / -160 500W(N:300W)

138-960MHz N Female/4.3-10 Female/DIN Female Hybrid Coupler For IBS And DAS

Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.

VN-HC2x2-013096-Oxx.doc

Part Number	VN-HC2x2-013096-Ox
Operating Frequency ( MHz )	130-960
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)	3.0±1.0
Insertion Loss (dB)	3.7
Isolation (dB)	≥21
IM3 (dBc @ 2×43dBm)	-150 / -160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female	4.3-10 Female	DIN Female
Handling Power (Watt, max)	500(N:300)
Peak Power (Watt, max)	1500(N:1200)

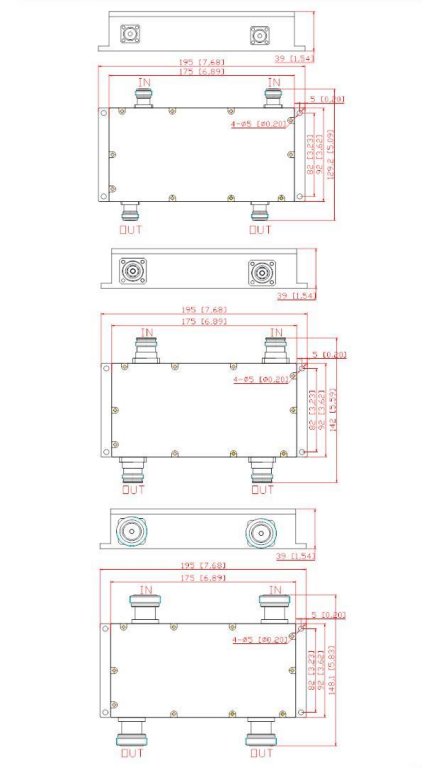

Dimension (mm)(L×W×H, excl connector)	195× 92 × 39
Net Weight (g)	1515 ± 5%	1590 ± 5%	1650 ± 5%
Packing Dimensions (mm,L×W×H)	210 × 170 × 65
Packing Carton Size (mm,L×W×H)	530 × 440 × 80
ROHS Compliance	Yes
Revision	R1
Date	28-Sept -2020
